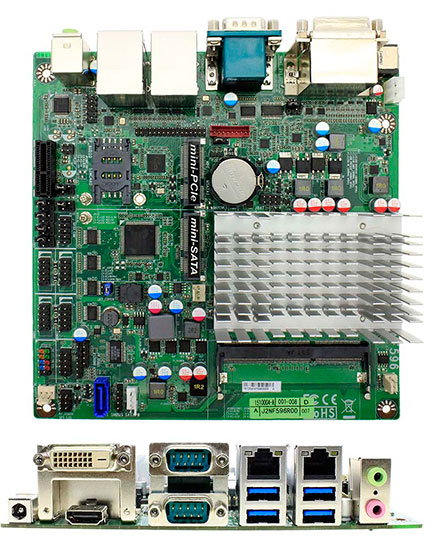

Jetway NF596-3160 (Intel Braswell)

Jetway NF596-3160 (Intel Braswell)

  • Intel® Braswell –N3160 Processor
  • 1 * DDR3L 1600MHz SO-DIMM up to 8GB
  • Support DVI-D, HDMI, LVDS 3 Independent Display
  • Realtek RTL8111G PCIe GbE, 2 * RJ45 ports
  • Support 1 * Serial ATAIII (6Gb/s),1 * Full size mSATA
  • 1 * RS232/422/485(COM1), 5 * COM (RS232)
  • 4 * External USB3.0 & 3 * Internal USB1.1/2.0
  • 1 * PCIe x1 slot, 1 * Full size mPCIe
  • 1 * SIM Card Holder
  • Integrated Realtek ALC662VD Audio CODEC with 4-CH
  • Mini-ITX Form Factor (170mm * 170mm)


Share

298.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (mSATA):

Build/Install:
 Form Factor
Dimensions - Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
 Processor System
CPU - Intel® Braswell – N3160 Processor
Core Number - 4
Max Speed - 2.24GHz
L2 Cache - 2M
Chipset - SoC
BIOS - AMI 64Mb Flash ROM
 Expansion Slot
Mini-PCIe - 1 (full size)
mSATA - 1 (full size)
PCIe - 1 (x1)
SIM card holder - 1
 Memory
Technology - 1 * DDR3L 1600 MHz SDRAM
Max. - 8GB
Socket - 1 * SO-DIMM
 Graphics
Controller - Intel® HD Graphics
VRAM - Shared Memory
VGA - 0
DVI-D - 1 ( DVI-D, Max. Resolution : 1920 * 1080@60Hz)
LVDS - 1 ( 24-bits Dual Channel, Max. Resolution : 1920 * 1080@60Hz)
HDMI - 1 (Max. Resolution : 1920 * 1080@60Hz)
MultiDisplay - Yes ( Triple Independent Display )
 Ethernet
Ethernet - 10/100/1000 Mbps
Controller - PCIe GbE LAN : Realtek RTL8111G
Connector - 2 * RJ 45
Audio
CODEC - HD Audio : Realtek ALC662VD
Channel - 4 Channel
 SATA
Max Data Transfer Rate - 1 * SATAIII (6.0Gb/s)
RAID - No
 Rear I/O
VGA - 0
DVI-D - 1
HDMI - 1
Ethernet - 2
USB - 4 * USB 3.0
Audio - 1
Serial - 2 (1 * RS232, 1 * RS232/422/485 with 5V/12V selectable header)
PS2 - 0
DC-input - 1 * 12V DC-in
 Internal Connector
VGA - 0
USB - 3 * USB 2.0
LVDS / inverter - 1
Serial - 4 * RS232 with 5V/12V selectable header
SATA - 0
mPCIe - 1 (full size)
mSATA - 1 (full size)
M.2 - 0
SIM card holder - 1
Chassis intrusion - 1
PS/2 - 1
GPIO - 1 ( 4in/4 out)
SMBUS/ I2C - 1 ( I2C)
Audio Header - 1 ( Line-out & MIC)
Audio Amplifier Header - 0
AT mode - 1
 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR - +12V DC-in PWR jack
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
 Environment
Temperature - Operating: 0°C – 60°C
- Storage: -20°C – 85°C
