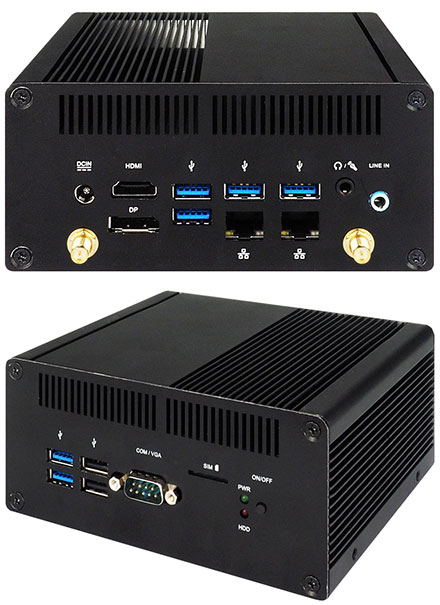

Jetway HBFCU792C-7100-B (Intel Kabylake)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway HBFCU792C-7100-B (Intel Kabylake)

  • Intel® Skylake/Kabylake U-series Processor (15W)
  • 2 * 260-pin Dual-channel DDR4 2133MHz SODIMM Up to 32 GB
  • 2 * USB2.0, 6 * USB3.0, 1 * COM, 1 * DP, 1 * HDMI, 2 * RJ45,1 * Line in, 1 * Mic+Line out
  • M/B Form Factor : UTX (117x112mm)
  • DC-12V_40W Adapter


Share

RAM :

SSD (mSATA):

OS:

Build/Install:
MB Model – JNU792C-7100 _Core i3 Processor
– JNU792V-3865 UTX _Celeron Processor
Part No. – COM series: HBFCU792C-7100-B / HBFCU792CW-7100-B
– TPM2.0 series: HBFCU792C-7100-T / HBFCU792CW-7100-T
– VGA series: HBFCU792V-3865-B / HBFCU792VW-3865-B
BIOS – AMI 16MB SMT Flash ROM
CPU/Chipset – Intel® Skylake/Kabylake U-series Processor (MAX : TDP 15W)
Notes : When the system runs, CPU will automatically adjust its working clock frequency according to changing workload.
Memory – 2 * 260-pin Dual-channel DDR4 2133MHz SODIMM Up to 32 GB
Storage – 1 * 2.5” SATA3 6Gb/s internal drive bay
– 1 * Full-size mSATA/mini-PCI Express shared slot
Network – 1 * Intel i211AT Gigabit LAN, 1 * Intel i219LM Gigabit LAN
– 1 * Half-size mini-PCIE slot (for WIFI model installed)
Rear Panel I/O – 4 * USB 3.0 ports / HBFCU792C-XXXX-B only
– 2 * USB 3.0 ports , 2 * USB 2.0 / HBFCU792V-XXXX-B only
– 1 * HDMI 1.4 (max. 4096 x 2304@24Hz resolution)
– 1 * DP (max. 4096 x 2304@60Hz resolution) / HBFCU792C-XXXX-B only
– 2 * RJ45
– 1 * Line-in, 1 * Mic+Line out (Realtek ALC662VD)
– 2 * Antenna holes (WiFi only)
– 1 * DC-In jack
Front Panel I/O – 1 * Power button
– 1 * Power LED , 1 * HDD LED
– 2 * USB 2.0 , 2 * USB 3.0
– 1 * COM (RS232/422/485) / HBFCU792C(W)-XXXX-B only
– 1 * VGA / HBFCU792V(W)-XXXX-B only
Power Source – FSP AC TO DC Adapter / DC12V_3.3A_40W
– AC 90~240V input
Compliance – CE, FCC, LVDS, RoHS, ErP Ready
Temperature – Operating Temperature: 0 ~ 50° C
– Storage Temperature: -10 ~ 70° C
Dimensions – 144 (W) x 116.9 (D) x 65 (H) mm
Packing – Net Weight: 1.8KG
– Gross Weight: 2.8KG
– Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm
OS Support – 32/64 bit versions of Windows 7, Windows 8.1, Windows 10, Linux
Warranty – 2 Year limited warranty
