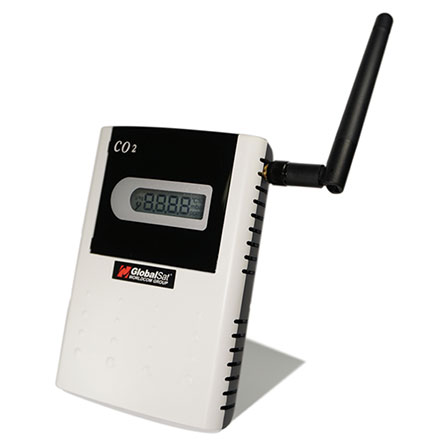

Globalsat LS-111P (CO2/Temperature/Humidity Detector, LoRaWAN)

Globalsat LS-111P (CO2/Temperature/Humidity Detector, LoRaWAN)
  • LoRaWAN !

LS-111P is designed to measure Carbon Dioxide (CO2), Temperature and Humidity by LoRa® long-range and low-power wireless connectivity. It is integrated LoRa® wireless technology, CO2 sensor knowhow and high-performance MCU solution for various IoT markets usage. With calibrated CO2 sensor module and compensated Temperature/ Humidity sensor integration, the data is ready for use. It is perfect for monitoring air quality in schools, office buildings, greenhouses, factories, hotels, hospitals, transportation lines and anywhere high levels of carbon dioxide are generated.

Features:
- LoRaWAN™ compliant
- High receiver sensitivity, long range solution
[more]

Share

298.00 EUR
incl. 19% VAT, plus shipping
In Stock (1 pcs)

Add to cart

LS-111P is designed to measure Carbon Dioxide (CO2), Temperature and Humidity by LoRa® long-range and low-power wireless connectivity. It is integrated LoRa® wireless technology, CO2 sensor knowhow and high-performance MCU solution for various IoT markets usage. With calibrated CO2 sensor module and compensated Temperature/ Humidity sensor integration, the data is ready for use. It is perfect for monitoring air quality in schools, office buildings, greenhouses, factories, hotels, hospitals, transportation lines and anywhere high levels of carbon dioxide are generated.

Features:
- LoRaWAN™ compliant
- High receiver sensitivity, long range solution
- Integrated with calibrated CO2 sensor
Accuracy: ±50 ppm, ±3% of reading
Range: 0 ~ 10,000 ppm
- Integrated with compensated Temp/ RH sensor
- Wide range DC power-in, 8~24V /or Micro-USB DC power-in, 5V
- Display CO2 concentration, Temp/ RH
- Alarm LED indicator

LoRa® Module GlobalSat LM-130H LoRaWAN™ Module
Frequency 863 ~ 870 MHz (EU)
902 ~ 928 MHz (US)
920 ~ 928 MHz (ROA)
LoRa® Antenna External Omni Antenna
824 ~ 960 MHz 2dBi SMA Male connector
Sensitivity -132 dBm @ 980 bps
Tx Power Up to 100 mW
Sensing Element CO2: Gold-plated infrared (NDIR) wave-guide technology with Automatic Baseline Correction (ABC) and passive gas diffusion (no moving parts) Temperature & Humidity: CMOS sensor
Response Time CO2: < 10 sec. @ 30 cc/min. flow rate < 3 min. diffusion time Temperature: min. 3 sec.;max. 30 sec. at τ 63% Humidity: < 8 sec. at τ 63%
Accuracy (at 25℃) CO2: ±50 ppm or ±3% of reading Temperature: ±0.5 ℃ Humidity: ±5 %RH
Repeatability CO2: ± 20 ppm + (±reading * 1%) Temperature: ±0.3 ℃ Humidity: ±0.3 %RH
Zero Drift CO2: < ± 10 ppm/yr. with Automatic Baseline Correction (ABC) Temperature: < 0.04 ℃/yr Humidity: < 0.5 %RH/yr
Measurement Range* CO2: 0 ~ 10,000 ppm Temperature: -40 ~ +125 ℃ Humidity: 0 ~ 85 %RH
Pressure Dependence CO2: 1.6 % reading per kPa
Operation Temperature -10 ~ +60 ℃
Operation Humidity 0 ~ 85 %RH, Non condensed.
0 to 50℃
Storage Temperature -20 ~ +70 ℃
Warm-up Time ≤ 1 min. (at full specs ≤ 15 mins)
LED Indicator Orange LED x 1 (by threshold setting, default is 800 ppm)
Red LED x 1 (by threshold setting, default is 1000 ppm)
Dimension Wall-mount: 113.57(H) x 80(W) x 28.79(D) mm
Weight 101 ±2g
Case Material ABS
Accessories LoRa® Antenna (External Omni Antenna) x 1
Sensor Programmable Cable (Optional)
Certification CE, FCC, Telec, ThingPark
Data sheet Download (PDF)
Data sheet Print view
LoRa keys/format Download (PDF)
AT Commands Manual Download
