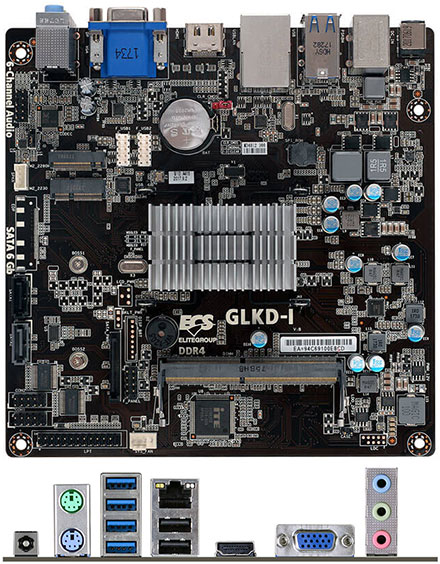

ECS GLKD-I Mini-ITX (Intel Gemini Lake J4005, HDMI/VGA, 19VDC) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !

ECS GLKD-I Mini-ITX (Intel Gemini Lake J4005, HDMI/VGA, 19VDC) [<b>FANLESS</b>]

Windows 10 Workable support
ECS Durathon Technology ensure the stability, reliability and performance of system.
ECS MIB III - A friendly interface for overclocking
ECS Intelligent EZ Utility : eBLU, eDLU

RAM :

Supports Intel^® CNVi

CPU	Onboard Intel^® Gemini Lake processors 1 Phase Thermal Design Power 100% Solid capacitor design
GRAPHICS	Supports DirectX^® 12 Supports HDMI 1.4b & Premium Audio Supports DP 1.2 (only with mainboard version with DP port)
MEMORY	Single-channelDDR4 Memory architecture Supports DDR4 2400 non-ECC, Un-buffered SDRAM Memory 1 X DDR4 SO-DIMM socket Support up to 8 GB
EXPANSION SLOT	1 X M.2 slot for WiFi/BT PCIe Gen 2 1 X M.2 slot for SSD SATA SSD Support Supports Intel® CNVi
Storage	Support by Gimini Lake Express Chipset 2 X Serial ATAIII 6Gb/s
Audio	6-Channel HD audio CODEC Realtek ALC662 Realtek ALC662 6-channel High Definition audio CODEC Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution Emulation of 26 sound environments to enhance gaming experience Voice Cancellation and Key Shifting in Karaoke mode Compatible with Direct Sound 3D™, A3D™, I3DL2
LAN	Realtek 8111H Gigabit Fast Ethernet Controller
USB	4 X USB3.1 Gen1 port(s) up to 5Gb/s (either rear I/O or front header) 6 X USB2.0 port(s) Up to 480 Mb/s [Back Panel 2 port(s), Onboard 4 port(s)]
REAR PANEL I/O	1 X PS/2 Keyboard & PS/2 mouse connectors 1 X Audio port (Line Out/Line In/Mic In) 1 X RJ-45 port 1 X HDMI port(s) 1 X D-Sub (VGA) port(s) 1 X Display port(optional instead of D-SUB (VGA)) 1 X DC-in 19V Connector
CONNECTORS & HEADERS	1 X 4-pin SYS_FAN connector 1 X Front Panel MIC/Speaker out header 1 X Front Panel switch/LED header 2 X USB 2.0 header 1 X CLR_CMOS header 2 X Serial port header (COM) 1 X Parallel port header (LPT) 1 X eDP header (optional)
SYSTEM BIOS	AMI BIOS with 128 MB SPI Flash ROM Supports M.I.B III Utility Dual Display Support GUI UEFI BIOS Multi-Language BIOS
FORM FACTOR	Mini ITX Form Factor 170*170
OS Support	Windows 10 64-bit Windows 10 32-bit
Certifications	CE/FCC Certification WHQL Certification
Bundled Software	ECS Intelligent EZ Utility : eBLU, eDLU

Data sheet	Download (PDF)
Data sheet	Print view
ECS Elitegroup Catalog	Download (PDF)
