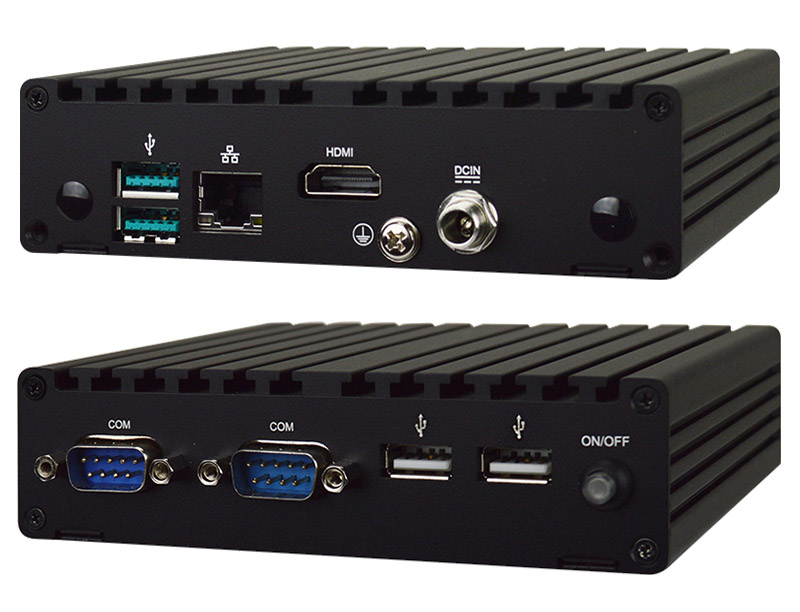

Jetway B420PADN1-A111 BoxPC (Intel N-series SoC Processor N97, 1x HDMI, 1x 2.5GE LAN) [FANLESS]

Jetway B420PADN1-A111 BoxPC (Intel N-series SoC Processor N97, 1x HDMI, 1x 2.5GE LAN) <b>[FANLESS]</b>
  • Barebone !
  • Intel N97 !
  • 1x HDMI !
  • 2x Comprehensive I/O !

  • Powered by Intel® N97/N200 SoC Processors (formerly Alder Lake)
  • High-Performance Memory: Supports DDR5 SO-DIMM
  • 4K Display: Supports HDMI 2.0b (4096×2160@60Hz) for high-resolution output
  • Storage & Expansion: 1 x M.2 E-Key, 1 x B+M Key paired with 1 x Nano SIM Slot
  • Comprehensive I/O: 2 x USB 3.2 Gen2, 2 x USB 2.0, 2 x RS-232/422/485
  • Enhanced Security: Supports Intel fTPM
  • Pre-installed with one DDR5 4800MHz, Single Channel SO-DIMM, 8GB Memory


Share

469.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
SYSTEM
MB FORM FACTORPico-ITX
CPUOnboard Intel® Processor N97 (Formerly Alder Lake-N, TDP 12W)
Onboard Intel® Processor N200 (Formerly Alder Lake-N, TDP 6W)
CHIPSETIntel® SoC
MEMORY1 x DDR5 4800MHz, Single Channel SO-DIMM, up to 32GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYIntel® PTT (Integrated fTPM)
RTC BATTERYLithium Battery
OS SUPPORTWindows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENTDC-in 12V
40W Adapter: AC90~240V, DC12V/3.3A
POWER ON MODEAT / ATX (Default) Mode
DISPLAY
GPUIntel® UHD Graphics
HDMI1 x HDMI 2.0b (Max Resolution: 4096 x 2160@60Hz)
AUDIO
CODECRealtek Audio Codec
LAN
ETHERNET1 x RJ45 for Realtek® RTL8111H GbE
SYSTEM I/O
REAR PANEL I/O2 x USB 3.2 Gen.1
1 x RJ45
1 x HDMI
1 x DC-in (Lockable)
2 x WIFI Antenna Holes
1 x GND Hold
FRONT PANEL I/O2 x RS-232/422/485
2 x USB 2.0
1 x Power Button + Power LED
EXPANSION
M.21 x B+M-Key 2242/3042/3052 (USB 3.2/SATA III/PCIe 3.0 x2)
1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1)
SIM1 x Nano SIM Card Slot
MECHANICAL
MOUNTINGWall + VESA mount
DIMENSIONS (W x D x H)129.0 (W) x 109.4 (D) x 34.0 (H) mm
NET WEIGHT0.56 KG
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE-20°C ~ 50°C (-4°F ~ 122°F)
STORAGE TEMPERATURE-40°C ~ 85°C (-40°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% Relative Humidity, Non-condensing
CERTIFICATIONCE/FCC Class A
LVD
ESG DECLARATIONChina RoHS
CMRT Report
TSCA Declaration
WEEE
REACH
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
